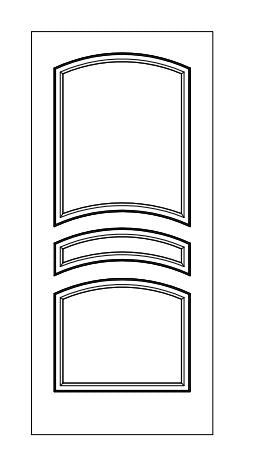

D3160 Carved Interior Door
- Sleek and subtle design
- Modern Interior Designer door
- Carved door
- Primed and ready for paint
- Doors are available in 4 sizes:
- 6'8" (1-3/8")
- 6'8" (1-3/4")
- 7'0" (1-3/4")
- 8'0" (1-3/4")
|Item Number||Order Size|
|CARVED8016-D3160-(Profile #)||1'6" (18") X 8'0" (96")|
|CARVED8018-D3160-(Profile #)||1'8" (20") X 8'0" (96")|
|CARVED80110-D3160-(Profile #)||1'10" (22") X 8'0" (96")|
|CARVED8020-D3160-(Profile #)||2'0" (24") X 8'0" (96")|
|CARVED8022-D3160-(Profile #)||2'2" (26") X 8'0" (96")|
|CARVED8024-D3160-(Profile #)||2'4" (28") X 8'0" (96")|
|CARVED8026-D3160-(Profile #)||2'6" (30") X 8'0" (96")|
|CARVED8028-D3160-(Profile #)||2'8" (32") X 8'0" (96")|
|CARVED80210-D3160-(Profile #)||2'10" (34") X 8'0" (96")|
|CARVED8030-D3160-(Profile #)||3'0" (36") X 8'0" (96")|
Color/Finish: Primed to be painted
Material: MDF Face
Core Type: Particle Board Core
Construction Type: 3 ply sandwich construction with 2 skins and a core

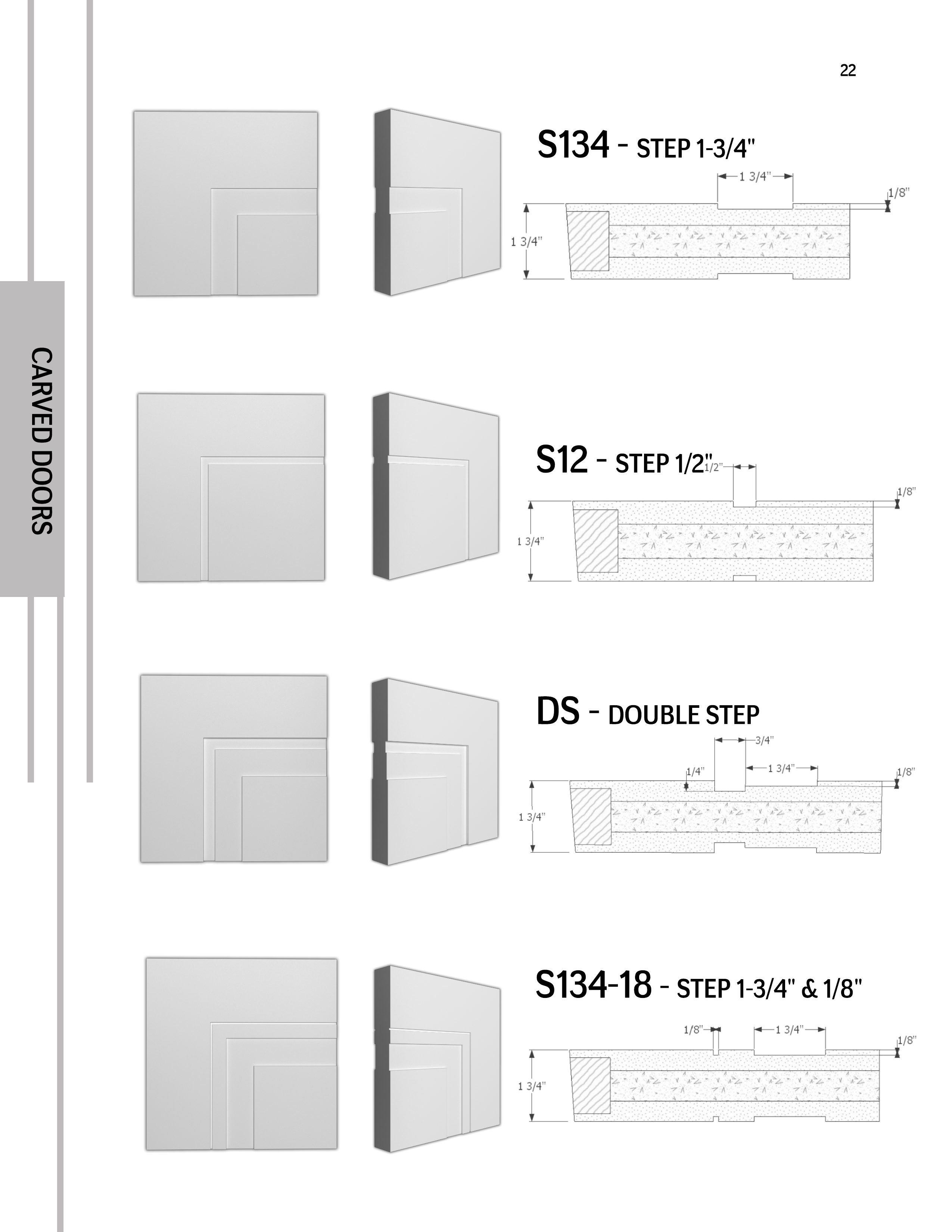

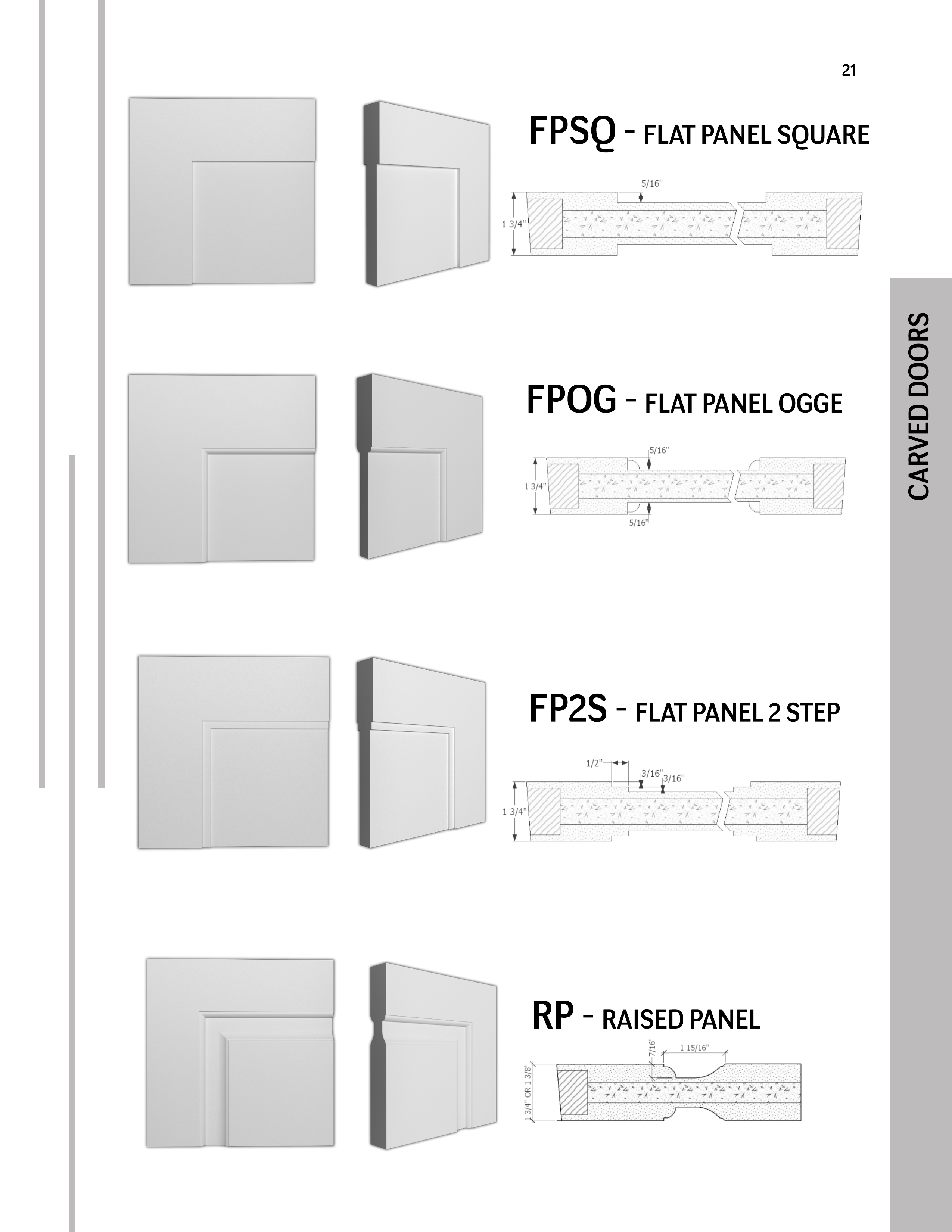

Sticking: Many available
Panel Type: Many available
Bevel: Beveled 3 Degrees on 2 sides
Under Sizing: 1/8” less on width, full size on height
Product Weight (lbs): 150 (lbs) max
Door Type: Interior Slab
Texture Type: Smooth
Carb 2 Compliant
