Fire-rated doors are an important part of a building's fire protection system, but they are often overlooked until a project reaches inspection or installation.
In multifamily buildings, apartments, offices, retail spaces, warehouses, and other commercial properties, the right door assembly can help slow the spread of fire and smoke while protecting the routes occupants use to exit safely.
For contractors, architects, property owners, and developers, choosing a fire-rated door is about more than selecting a door with a fire label. The door, frame, hardware, glazing, and installation all work together as a tested assembly.
A recent Darpet project at AMLI Lofts in Chicago's South Loop provides a practical example. The project incorporated a variety of flush fire-rated steel doors throughout the property, including stairwell doors, exit doors, storage doors, bathroom doors, loading dock access doors, and individual apartment entries.
This case study looks at what fire-rated commercial doors are, where they are commonly required, what components matter, and how these requirements translate into a real multifamily project.
What Is a Fire-Rated Commercial Door?
A fire-rated commercial door is part of a tested and certified door assembly designed to resist fire and, depending on the assembly, limit the passage of smoke for a specified period.
Unlike an ordinary interior door, a fire-rated opening is evaluated as a system. The assembly can include:
- Door leaf
- Door frame
- Hinges and other hardware
- Latching hardware
- Door closer
- Fire-rated glazing
- Vision lites
- Other approved components
Fire-rated assemblies are commonly certified and labeled by organizations such as UL, Intertek (WHI), or FM.
Typical fire-resistance ratings include 20, 45, 60, 90, and 180 minutes, although the exact rating required depends on the building's construction, occupancy, fire-resistance-rated wall or barrier, and applicable code requirements.
The purpose isn't to make a building completely fireproof. Instead, rated assemblies are designed to help slow fire and smoke spread and preserve protected paths of egress long enough for occupants to evacuate and emergency responders to act.
Important: A fire-rated door should always be specified as part of a compatible rated opening assembly. A fire-rated slab alone does not automatically create a compliant fire-rated opening.
Where Are Fire-Rated Doors Required?
Fire-rated doors are typically installed wherever an opening occurs in a fire-resistance-rated wall, barrier, partition, or enclosure.
The exact requirements depend on the building and jurisdiction, so the construction documents and applicable codes should always be reviewed before specifying a door.
Common applications include:
Stairwell Enclosures
Stairwells are critical evacuation routes in multifamily and commercial buildings.
Doors serving rated stair enclosures are commonly required to have a fire rating and hardware that allows the door to close and latch automatically after occupants pass through.
At AMLI Lofts, Darpet supplied flush fire-rated steel doors with levers, deadlocks, and door closers for stairwell access.
Exit Passageways and Rated Corridors
Corridors and exit passageways may form part of a building's protected egress system.
Where a rated wall or separation includes a doorway, the opening assembly may need to maintain the required level of protection.
Occupancy Separations
A building can contain multiple uses under one roof. For example, a multifamily property may include apartments, parking, retail, storage, mechanical areas, and other spaces.
Where code requires separation between occupancies or hazards, openings through that separation may require rated assemblies.
Mechanical and Electrical Rooms
Rooms containing equipment or utilities can have specific fire-protection requirements depending on their location, equipment, and relationship to other building spaces.
Shaft Enclosures
Elevator shafts, duct shafts, and other vertical openings can provide a pathway for fire and smoke to travel through a building.
Rated doors help maintain the required protection at access points into these enclosures.
Hazardous Storage Areas
Storage areas containing materials or equipment that create additional fire hazards may require rated openings depending on the use and applicable code provisions.
Understanding the Fire Rating
One of the most important steps in specifying a commercial fire door is determining the rating required for the opening.
The rating of the door is not selected independently of the wall. The required rating is based on the surrounding construction and applicable building-code provisions.
As a general principle, the opening protection rating is often lower than the rating of the wall or barrier it serves. For example, a two-hour rated wall may have an opening requiring a 90-minute door assembly.
However, this should not be treated as a universal rule for every project.
The architect, code consultant, contractor, or authority having jurisdiction should determine the required rating for each opening.
| Application | Possible Door Rating | Important Consideration |
|---|---|---|
| Interior rated separation | 20–45 minutes | Depends on wall and code requirements |
| Rated corridor | 20–60 minutes | Egress and corridor requirements apply |
| Stairwell | 45–90+ minutes | Depends on enclosure rating and code |
| Shaft enclosure | 45–90+ minutes | Opening protection requirements vary |
| Storage/mechanical areas | 45–180 minutes | Depends on room use and separation |
| Large industrial opening | Up to 3 hours | May require a rolling fire door |
These are examples rather than universal specifications. Always verify the required rating for the individual opening.
The Door Is Only One Part of the Assembly
One of the most common mistakes when dealing with fire-rated openings is thinking only about the door slab.
A compliant opening requires compatible components.
Fire-Rated Door
The door must carry the appropriate fire label for its intended application.
Steel doors are widely used in commercial environments because they provide durability and are well suited to high-traffic areas.
Wood fire-rated doors are also available. Modern solid-core fire-rated wood doors can use mineral or other approved cores and are available for projects where a more residential or architectural appearance is desired.
Fire-Rated Frame
The frame must be properly rated and compatible with the door and wall construction.
Replacing or modifying components without verifying their compatibility can compromise the listed assembly.
Latching Hardware
Fire doors generally need to remain positively latched when closed.
This is why appropriate latching hardware, such as a labeled lockset or exit device, is an important part of the opening.
Door Closer
A fire door generally needs to close automatically.
A door that is propped open or does not close and latch correctly cannot perform its intended function during a fire.
Glazing and Vision Lites
Some commercial openings require visibility through the door.
Fire-rated vision lites can provide that visibility while maintaining the required protection when properly specified as part of a compatible assembly.
Fire-Rated Doors at AMLI Lofts in Chicago

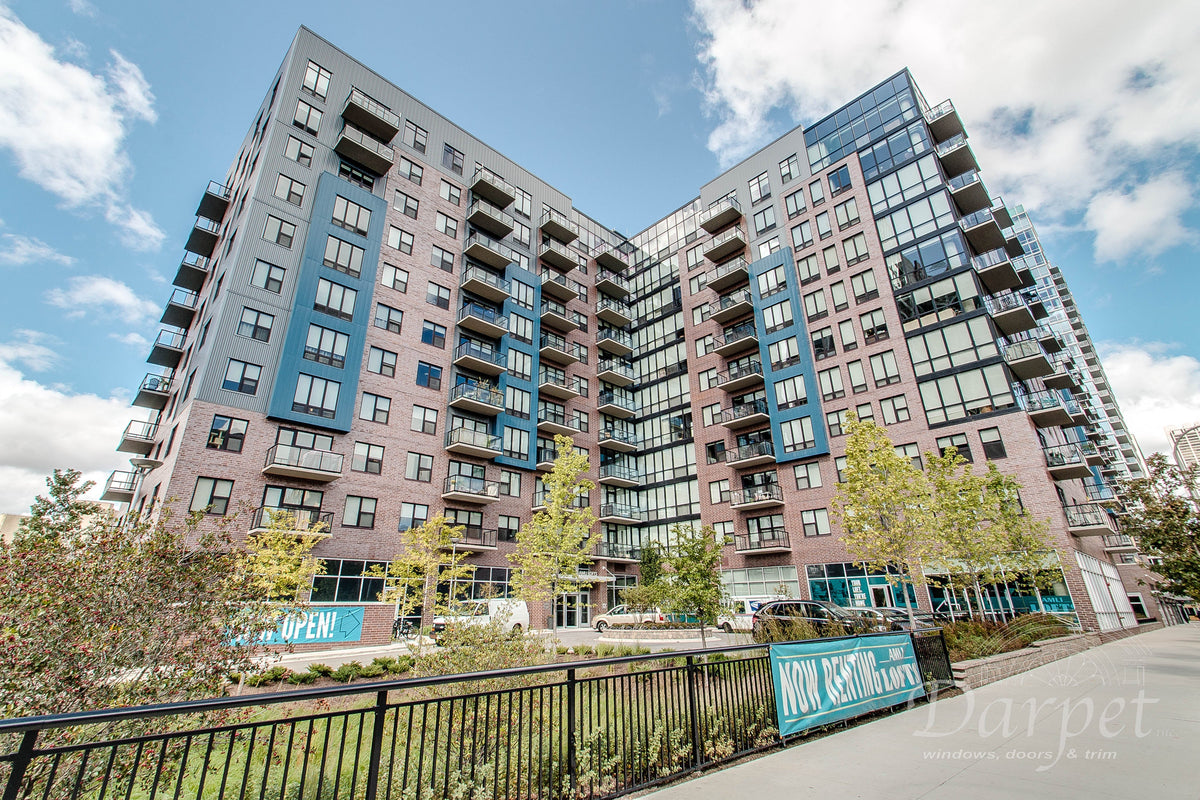

Case Study: AMLI Lofts – South Loop, Chicago, IL
Located in Chicago's South Loop, AMLI Lofts combines the character of an industrial loft building with modern multifamily amenities.
The property offers studio, one-bedroom, and two-bedroom apartments, with interiors designed around the architectural character associated with Chicago's Printers Row and South Loop neighborhoods.
Homes feature elements such as:
- Ten-foot ceilings
- Exposed concrete
- Spiral ductwork
- Quartz countertops
- ENERGY STAR appliances
The property also includes amenities such as a business center, fitness center, outdoor pool, BBQ area, rooftop sundecks, and sport court. Ground-floor retail adds convenience for residents.
Its location provides access to shopping, Grant Park, Lake Michigan, the Lakefront Trail, and CTA transportation, making it a particularly urban multifamily environment.
For a property like this, door requirements extend well beyond individual apartment entries.
There are stairwells, corridors, storage areas, bathrooms, loading areas, and other spaces where fire-rated openings can be an important part of the building's life-safety strategy.
Fire-Rated Door Applications at AMLI Lofts
Darpet supplied a range of flush fire-rated steel door assemblies for different applications throughout the property.
The project demonstrates an important point about commercial door specification: one building can require multiple door configurations even when the doors share a similar basic appearance.
Stairwell Access Doors
Stairwell openings included flush fire-rated steel doors with lever hardware, deadlocks, and closers.
These doors combine a straightforward commercial appearance with the hardware required for controlled access and automatic closing.
Doors With Vision Lites
Some openings incorporated narrow or square vision lites.
Vision lites can be especially useful where occupants or building personnel need to see through an opening before opening the door.
The project included configurations such as:
- Flush fire-rated steel doors with narrow vision lites
- Lever hardware
- Door closers
- Kickplates
Other openings used square vision lites with exit hardware, including a push bar, lever, and closer.
Exit Doors
Exit openings have different functional requirements than ordinary access doors.
At AMLI Lofts, Darpet supplied flush fire-rated doors configured with square vision lites, push bars, levers, and closers for exit applications.
The combination of rated construction and appropriate egress hardware helps the opening serve its intended function.
Storage Areas
The property also required double flush fire-rated doors with lever hardware for storage areas.
Double-door configurations can accommodate larger openings while maintaining the required fire protection when the complete assembly is properly specified and installed.
Bathroom Doors
Darpet supplied flush fire-rated doors with push plates for bathroom applications where rated openings were required.
This is a useful reminder that the intended use of a room alone does not necessarily determine whether its door needs a fire rating.
A restroom door does not automatically need to be fire-rated. The requirement depends on the wall, corridor, occupancy, and location of the opening.
Loading Dock Access
Loading and service areas often require durable commercial openings capable of handling frequent use.
At AMLI Lofts, flush fire-rated doors with square vision lites and full lever locksets were used for loading dock access.
Individual Loft Apartment Access
Even the doors serving individual residential units can have specific fire-rating requirements depending on the building's construction and location of the opening.
The project included flush fire-rated doors with peepholes, deadlocks, and levers for individual loft apartment access.
This configuration illustrates how a fire-rated door can still provide the everyday functionality expected from an apartment entry door.
Why Flush Steel Doors Work Well in Multifamily Buildings
Flush steel doors are a practical choice for many commercial and multifamily projects.
Their simple face provides a clean appearance that works with contemporary architecture, while steel construction offers durability in areas exposed to frequent traffic.
Advantages can include:
- High durability
- Low-maintenance surfaces
- Compatibility with commercial hardware
- Availability in multiple gauges
- Fire-rated configurations
- Vision-lite options
- Compatibility with exit devices and closers
- A clean appearance suited to modern interiors
For a property like AMLI Lofts, the flush profile also works naturally with the building's industrial-inspired aesthetic.
Other Types of Fire-Rated Commercial Doors
Not every fire-rated opening uses a conventional hinged steel door.
Fire-Rated Wood Doors
Fire-rated solid-core wood doors can be appropriate when appearance is a priority.
They can offer a more architectural or residential look while still being manufactured and labeled for rated applications.
Fire-Rated Glass
Where visibility and daylight are important, approved fire-rated glazing systems can provide transparency while maintaining the required level of protection.
These systems must be specified as rated assemblies rather than treated like ordinary architectural glass.
Rolling Fire Doors
Large commercial and industrial openings may require rolling fire doors.
For example, Overhead Door FireKing® 630, 631, 634, and 635 models are designed for fire-rated applications and are available in configurations with UL/FM labeling, steel construction, and ratings up to three hours.
Depending on the model and configuration, these systems can accommodate very large openings, with widths reaching approximately 41 feet 2 inches.
Rolling fire doors are commonly considered for applications such as warehouses, factories, loading areas, and other large openings where a conventional swinging door is impractical.
Fire-Rated Door Requirements: A Practical Checklist
Before ordering a commercial fire-rated door, review the opening from a system perspective.
1. Identify the Wall Rating
Determine whether the wall is fire-resistance-rated and identify its required rating.
2. Confirm the Door Rating
The required door rating should be determined from the construction documents and applicable code requirements.
3. Verify the Frame
Make sure the frame is appropriate for the rated wall and compatible with the door assembly.
4. Specify the Hardware
Determine whether the opening requires:
- Lever locksets
- Deadlocks
- Exit devices
- Door closers
- Push plates
- Other listed hardware
5. Check Vision Lites
If visibility is needed, make sure the glazing is approved for the required fire-rated assembly.
6. Verify the Label
Look for the appropriate certification and rating information.
7. Follow Installation Requirements
Even a correctly manufactured door can fail to perform as intended if it is installed incorrectly.
Never assume that changing hardware, cutting an opening, drilling the door, or modifying a rated assembly is harmless. Unauthorized modifications can affect the listing and fire rating.
Can You Modify a Fire-Rated Door?
This is an area where contractors and installers should be particularly careful.
A fire-rated door is not the same as a standard interior door that can be freely trimmed, drilled, cut, or modified in the field.
Modifications can affect the tested construction and may void the certification if they are not specifically permitted.
Before modifying a rated door, consult the manufacturer's listing and installation requirements.
This is especially important when adding:
- Vision lites
- Louvers
- Hardware
- Cutouts
- Locks
- Other penetrations
When in doubt, verify the modification with the door manufacturer or an appropriate qualified professional before work begins.
Do Warehouse Doors Always Need a Fire Rating?
Not necessarily.
A warehouse door may require a fire rating when it is located in a fire-resistance-rated separation or when other code requirements apply.
The fact that a space is called a "warehouse" does not, by itself, determine the required door rating.
The same principle applies to bathrooms, storage rooms, mechanical rooms, and other spaces.
The opening's location and the building's code requirements matter more than the room name.
Fire-Rated Doors and Life Safety
Fire-rated doors are ultimately about protecting people.
A rated wall is only effective when its openings are appropriately protected. Doors allow people to move between spaces, but they also create potential openings through fire-resistance-rated construction.
A properly specified and maintained fire-rated opening can help:
- Slow the spread of fire.
- Limit smoke movement.
- Protect stairways and other egress routes.
- Separate different building uses.
- Provide emergency responders with protected areas to work.
For architects and contractors, this makes door specification an important part of the overall life-safety strategy rather than simply a finish or hardware decision.
Choosing the Right Commercial Door Partner
Fire-rated openings require attention to details that ordinary interior doors do not.
The right supplier should be able to help coordinate the door, frame, hardware, glazing, rating, and intended application based on the project's specifications.
At Darpet Doors & Trim, our experience with commercial and multifamily projects includes supplying fire-rated door configurations for a variety of applications.
The AMLI Lofts project demonstrates how a single property can require multiple rated-door configurations, from stairwell and exit doors to apartment entries, storage, bathrooms, and loading areas.
The most successful approach is to address these requirements early in the project.
Review the architectural schedules, wall ratings, hardware requirements, and opening conditions before ordering. Doing so can help prevent costly substitutions, field modifications, or inspection issues later.
Final Thoughts
Fire-rated commercial doors are an essential part of a building's fire-protection and life-safety strategy.
They are not simply heavier versions of ordinary doors. The door, frame, hardware, glazing, labeling, and installation must work together as a tested assembly.
The AMLI Lofts project in Chicago's South Loop provides a useful example of how these requirements translate into a real multifamily property. Darpet supplied a variety of flush fire-rated steel door configurations, each selected for a particular application within the building.
Whether you're working on a multifamily development, commercial renovation, institutional property, warehouse, or other construction project, determining the required fire rating early can make the door specification process much smoother.
For any project, always verify the required rating and assembly with the project's construction documents, applicable building codes, and the authority having jurisdiction.
